Crosshole Sonic Logging (CSL)

---

Seeing Through Concrete: Understanding Crosshole Sonic Logging (CSL) with CM Engineering Solutions

The integrity of deep foundations, like drilled shafts and slurry walls, is paramount to the stability of bridges, high-rise buildings, and other critical infrastructure. But what happens when concrete is poured into a deep excavation? How can you be certain that the concrete is free from defects and that the foundation will perform as intended? That's where Crosshole Sonic Logging (CSL) comes in.

CSL is a non-destructive testing method used to evaluate the quality and integrity of concrete within deep foundations. It provides a comprehensive assessment of the concrete’s homogeneity and helps identify potential defects such as voids, cracks, and soil inclusions that could compromise the structure’s load-bearing capacity.

How Crosshole Sonic Logging Works:

The CSL method involves embedding multiple access tubes (typically steel or PVC) vertically into the fresh concrete of the foundation element during construction. These tubes are strategically placed, usually around the perimeter of the shaft. Once the concrete has hardened, the CSL test can be performed.

The process involves lowering a transmitter (source) and a receiver probe into two parallel access tubes. The transmitter emits a high-frequency sonic pulse, and the receiver measures the time it takes for the pulse to travel between the tubes. By systematically moving the probes along the length of the access tubes, a continuous profile of sonic velocity is obtained for that particular tube pair.

Here's a breakdown of the key principles:

Sonic Velocity: The speed at which the sonic pulse travels through the concrete is directly related to its density and integrity. High sonic velocities indicate sound, homogenous concrete.

Travel Time: Slower travel times and reduced signal amplitude suggest the presence of defects. Voids, cracks, or inclusions will obstruct the sonic pulse, slowing it down and weakening its signal.

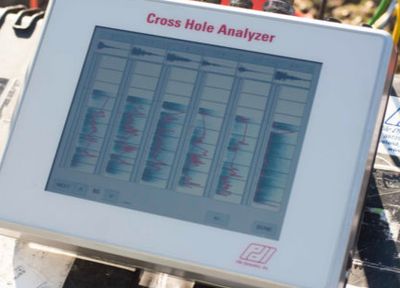

Data Interpretation: The data collected is then processed and analyzed to generate a CSL profile. This profile provides a visual representation of the concrete’s quality along the length of the foundation, highlighting areas of concern.

Why is CSL Important?

CSL testing offers several crucial benefits for ensuring the long-term performance of deep foundations:

Early Defect Detection: CSL allows for the identification of defects early in the construction process, enabling timely remediation and preventing costly repairs later.

Quality Control: It provides a reliable and objective means of verifying the quality of the concrete placement and ensuring compliance with project specifications.

Risk Mitigation: By identifying and addressing potential weaknesses in the foundation, CSL helps mitigate the risk of structural failure and ensures the safety and stability of the structure.

Cost Savings: While involving an upfront investment, CSL testing can ultimately save money by preventing costly repairs and potential failures in the long run.

Improved Understanding: CSL provides valuable insights into the as-built condition of the foundation, facilitating informed decision-making regarding future maintenance and rehabilitation.

CM Engineering Solutions, Inc: Your Partner in CSL Testing in Oklahoma and Beyond

At CM Engineering Solutions, Inc, we understand the critical importance of reliable foundation testing. We offer comprehensive Crosshole Sonic Logging (CSL) services in Oklahoma and the surrounding states, providing our clients with the assurance they need to build with confidence.

Our commitment to quality and precision is reflected in our approach to CSL testing:

Experienced Technicians: Our team of highly trained and experienced technicians is proficient in performing CSL testing and interpreting the results. They possess a deep understanding of concrete behavior and the intricacies of the CSL method.

State-of-the-Art Equipment: We utilize the latest CSL equipment and software to ensure accurate and reliable data collection and analysis.

Detailed Reporting: We provide our clients with comprehensive CSL reports that clearly present the findings, including detailed profiles, interpretations, and recommendations. Our reports are easy to understand and provide actionable insights for decision-making.

Commitment to Safety: We prioritize safety in all our operations, adhering to strict safety protocols and procedures to ensure the well-being of our team and the integrity of the project site.

Serving the Region: We proudly offer CSL services across Oklahoma and neighboring states, including Arkansas, Kansas, and Texas. Our regional presence allows us to respond quickly and efficiently to our clients’ needs.

Why Choose CM Engineering Solutions, Inc for Your CSL Testing Needs?

Choosing CM Engineering Solutions, Inc for your CSL testing means partnering with a trusted provider committed to excellence. We offer:

Reliable Results: Accurate and dependable data to inform your critical decisions.

Expert Analysis: Comprehensive interpretation of results by experienced professionals.

Timely Service: Prompt response and efficient testing to keep your projects on schedule.

Client-Focused Approach: We tailor our services to meet your specific needs and project requirements.

Don't leave the integrity of your deep foundations to chance. Contact CM Engineering Solutions, Inc today to learn more about our Crosshole Sonic Logging services and how we can help you ensure the quality and longevity of your infrastructure projects. We are dedicated to providing reliable and insightful testing solutions to support your success.
